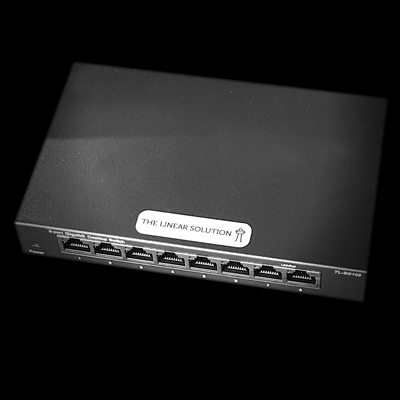

OCXO AUDIOPHILE SWITCH 2.0

OCXO CIRCUIT
ULTRA HIGH PRECISION OCXO

The unit core features an (Oven Controlled Crystal Oscillator) OCXO. This OCXO was designed for high audio quality in mind to provide extreme precision frequency (+-05ppb) and reduces phase noise.

ULTRA Low Noise Linear Regulators
With our new design, we are able to stable the low noise power we needed for the oscillator.

ZERO GROUND CIRCUITRY
It continuously drives the ground signal and greatly reduces noise (jitter) caused by unstable volts.

OCXO CIRCUIT - Specifications
▪ Military Custom Spec OCXO with 5ppb
▪ High Stability
▪ Low Aging
▪ Ultra low Jitter <0.5ps RMS
▪ 9V DC input 2.1mm x 5.5mm

Optons:
▪ Evox caps and Silver internal wire available as update.
