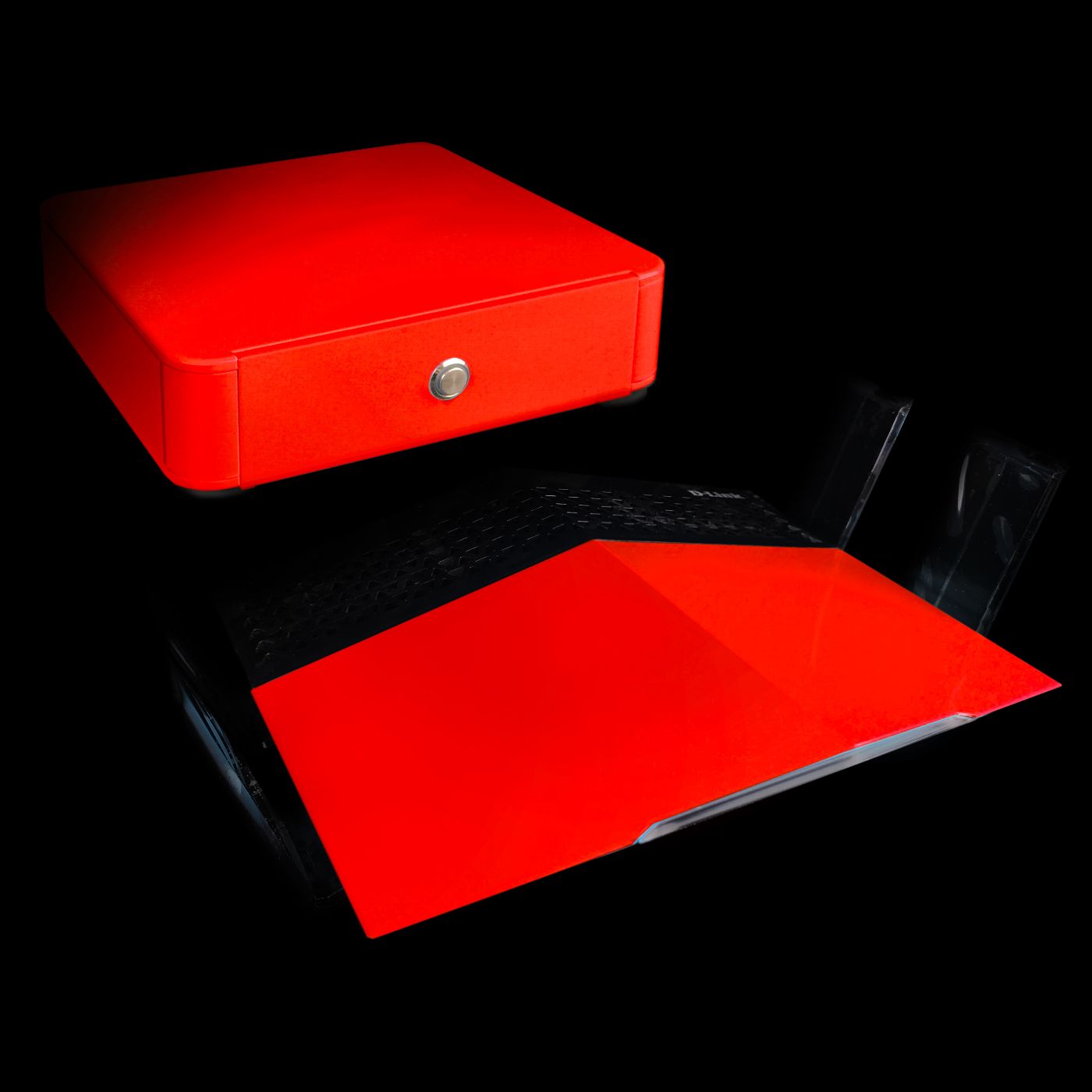

TCXO AUDIOPHILE ROUTER

LINEAR POWER SUPPLY
PROPERITY DESIGN CIRCUIT
Our Engineer study the switch and design the linear circuit that best provide ultra-low noise power to feed the switch and oscillator module.

DUAL RAIL PARALLEL OUTPUT DESIGN
Not usually seen in regular linear supply, it requires additional cost and design in mind. However, this sure to provide constant feed as needed in sudden voltage drop or unstable power environment

HARD CRAFTED RECTIFIERS DIODE AND SUPER-FAST DIODE
Which work hand in hand with AC-DC conversion system to provide stable working environment.

LINEAR POWER SUPPLY
- Specifications
- AC 120V, 60Hz 12V Ouput
- Oyaide DC connectors
- Furutech IEC

TCXO CIRCUIT
ADDITIONAL AUDIO CAPS
Adding additional audio grade is needed in order o provide exceptional sound on network audio over traditional router design.

24K GOLD CIRCUIT TRACE
The 24K circuit trace on our PCB is needed to match our power supply which able to provide extra stability for the oscillator module.

ULTRA STABLE REGULATOR DESIGN
With our new design, we are able to achieve the measure we needed for the oscillator.

ZERO GROUND CIRCUITRY
It continuously drives the ground signal and greatly reduces noise (jitter) caused by unstable volts.

TCXO CIRCUIT - Specifications
- 2oz Copper PCB +/- 1.0ppm
- Ultra low Jitter <1ps RMS
- 5V DC input 2.1mm x 5.5mm

WIRELESS ROUTER - Specifications
- AC1900 Dual Band
- Gigabit Ethernet
- Dual Core
- Smart Beam Forming
- High Power Amplifier
