USB 3 ADAPTER - Specifications:
PCI express USB interface chip set
- USB 3.1 Compliant ASM host controller
- All Solid-state Capacitor, 4-Layer PCB
- Support (10Gbps) at USB 3.1 type C and Type -A 3.1 (Gen 2)
- Support SS(5Gbps),HS(480 Mbps),FS (12 Mbps),LS (1.5 Mbps)
- PCIe x1 Gen2 interface
Internal Power Input
- Input voltage : +5.0V (+0.5V, -0.5V)
- Input current : 2A
- 15pin SATA power connector

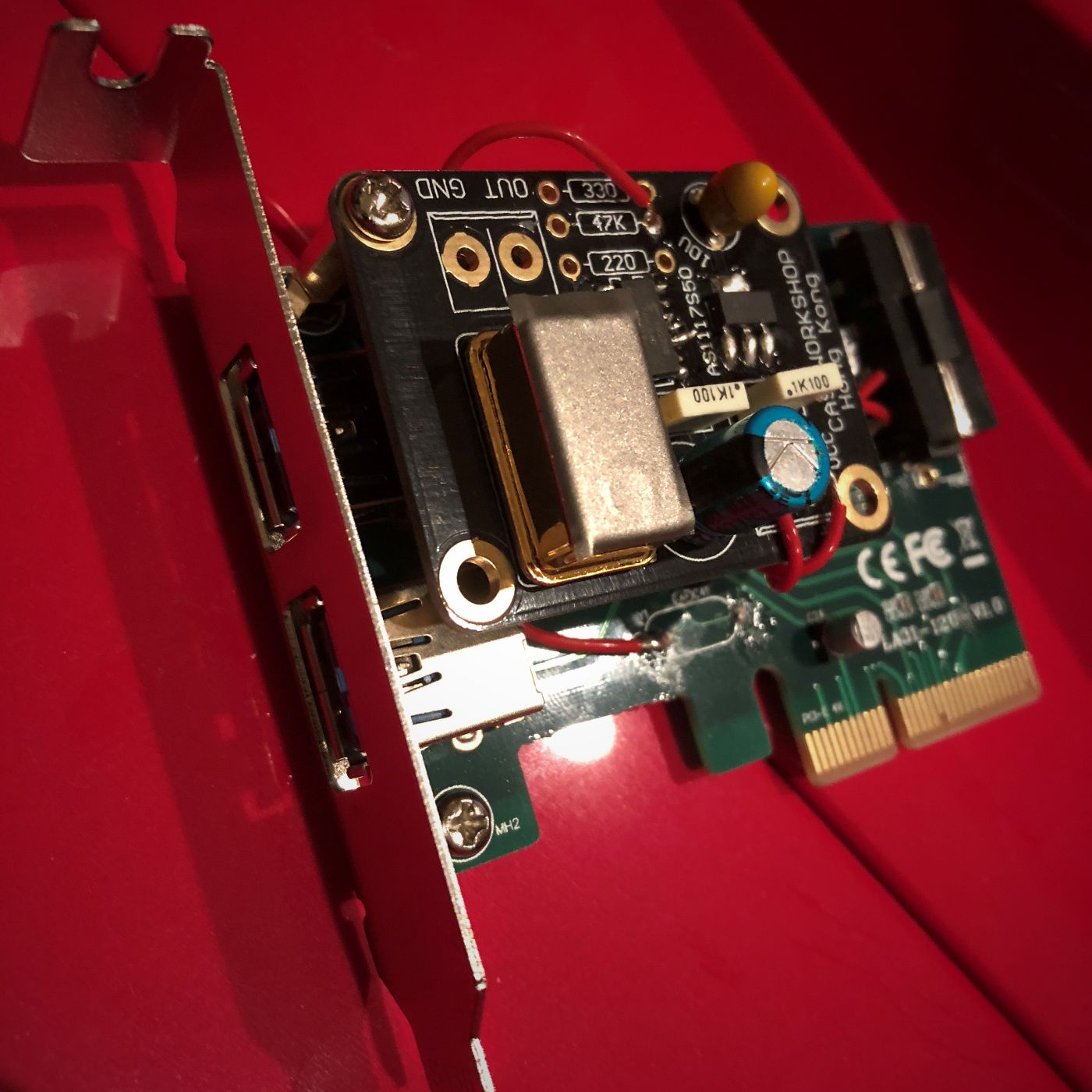

TCXO CIRCUIT
24K GOLD CIRCUIT TRACE
The 24K circuit trace on our PCB is needed to match our power supply which able to provide extra stability for the oscillator module.
ULTRA STABLE REGULATOR DESIGN
With our new design, we are able to achieve the measure we needed for the oscillator.
TCXO - Specifications:
- 2oz Copper
- PCB +/- 1.0ppm
- Ultra low Jitter <1ps RMS
USB Port Output Power
- Output voltage : +5.0V(+0.5V, -0.25V)
- Over current protection : 1.5A at 20°C
- Recommend output current : 0.5A >
OS support
- Windows 7 or higher version
- Linux
